Full Automatic Plastic Water Bottle Filling Machine 3000BPH SUS304

Name: Full Automatic Plastic Water Bottle Filling Machine 3000BPH SUS304
Brand: Fill drink
Price: 13125 USD

Quality Full Automatic Plastic Water Bottle Filling Machine 3000BPH SUS304 for sale

Brand Name : Fill drink

Model Number : CGF12-12-6

Certification : CE ISO

Place of Origin : China

MOQ : 1

Price : 13125

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 30days

Packaging Details : Wood

Automatic grade : Automatic

Driven type : Electric

Condition : New

Dimension(l*w*h) : 2450*1800*2400MM

Type : Filling Machine

Application : Beverage

After-sales service provided : Engineers available to service machinery overseas

Packaging material : Wood

Voltage : Can be designed

Packaging type : Bottles

Weight : 4000kg

Power : 5KW

Warranty : 1 Year

Name : CE SGS ISO mineral water filling machine pure water bottling machine

Capacity : 0-3000BPH

Material : SS304

Product name : Complete Production Line for Bottled Mineral Water

Filling material : Pure/Mineral water

Processing : Filling Machine

Contact Now

Full Automatic CGF12-12-6 Water Plastic Bottle Water Filling Machine With SUS304

Product Description:

This automatic rinsing, filling and capping machine, could be applicable quantitative filling and capping of drinking water,mineral water,Pure water. It has functions as follows: Disinfectant rinse, aseptic water rinsing; automatically liquid filling tank, inlet material; feed bottles by air conveyer (or screw convey);automatically rinse, open valve and feed caps; not rinse, open valve and feed caps without bottles .

Compact structure; reasonable design and convenient operation and maintenance. Main machine is adopted frequency speed control, it runs stable and credibility. Material of contacted with product we use high food grade stainless steel. After exchanging changeover parts, it is applicable for different kinds of PET bottle filling.
Fill drink adopt advanced touch screen operation and realize human-machine communication. Function of control system as follows: product speed control, automatic stop with faults and take count of output,.etc.

Product Parameters:

Bottle rinsing

Into bottle way is air conveyor direct connection with bottle dial.
All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
304/316 stainless steel washing pump make the machine more durable.

Bottle Filling

304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
Efficient spray nozzle rinse thoroughly and save water for flushing

Full Automatic Plastic Water Bottle Filling Machine 3000BPH SUS304

Bottle Capping.

Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle

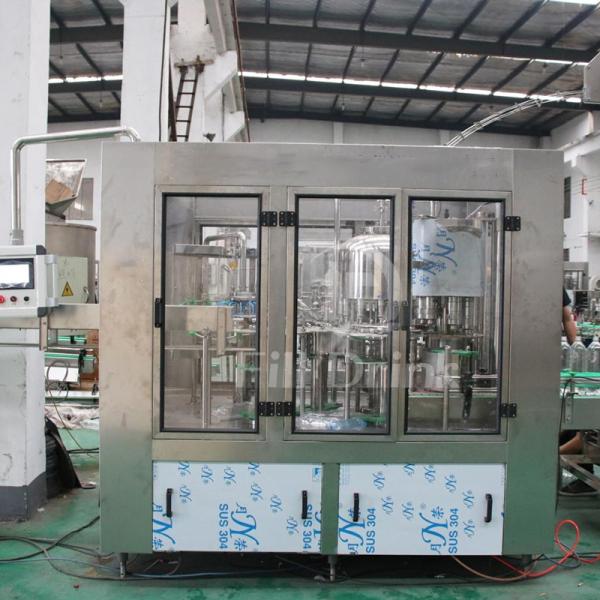

The image of product

Full Automatic Plastic Water Bottle Filling Machine 3000BPH SUS304

After sale service

1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.

2. We supply below necessary documents with the machine:

a. Machine layout

b. Electricity diagram

c. Machine certificate

d. General manual book/maintenance book

Trade Terms

Terms	EXW,FOB,CFR,CIF or others
MOQ	1set
Port	Shanghai port
Shipment	Ocean or air transportation
Payment Terms	L/C,T/T, Western Union, MoneyGram
Payment condition	30%T/T
Supply Capability	20 Set/Sets per Month
Lead Time	About 30 days
